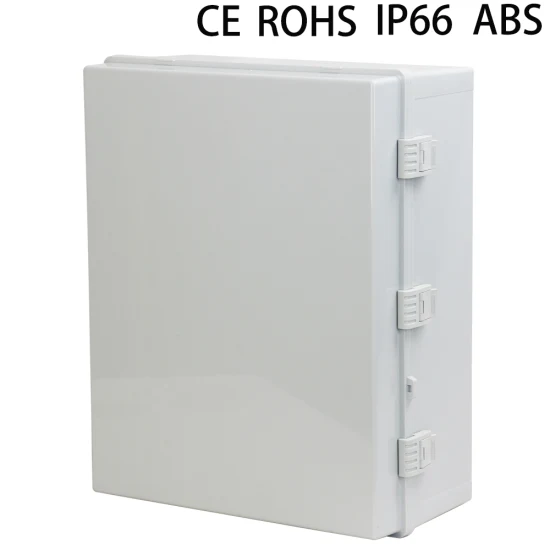

20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box

loading

20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Customization: Available
Type: Distribution Metering Box
Structure: Protection
Quantity:
Inquire Add to Basket
Product Description

Basic Info.

Model NO.
500*400*200H
Form
All- packaged Type
Operation Voltage
High Voltage
Size
20*16*8inch
Application Range
Electrical Industry
Shell Material
Plastics
Shell Protection Grade
IP66
Brand
Fameto
Sell Materials Online
ABS
Color
Grey
Impact Rating
Ik08
Transport Package
Carton
Specification
500*400*200mm
Trademark
FAMETO
Origin
China
HS Code
4202920000
Production Capacity
100000

Packaging & Delivery

Package Size
52.00cm * 42.00cm * 22.00cm
Package Gross Weight
4.500kg
Lead Time
5 days (1 - 50 Pieces)
9 days (51 - 100 Pieces)
15 days (101 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

Body Material: ABS
Cover Material: ABS or PC
Level of Impact: IK08
Material Characteristics: Impact, heat, low temp and chemical resistance, excellent electrical performance and surface gloss, etc.
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation:

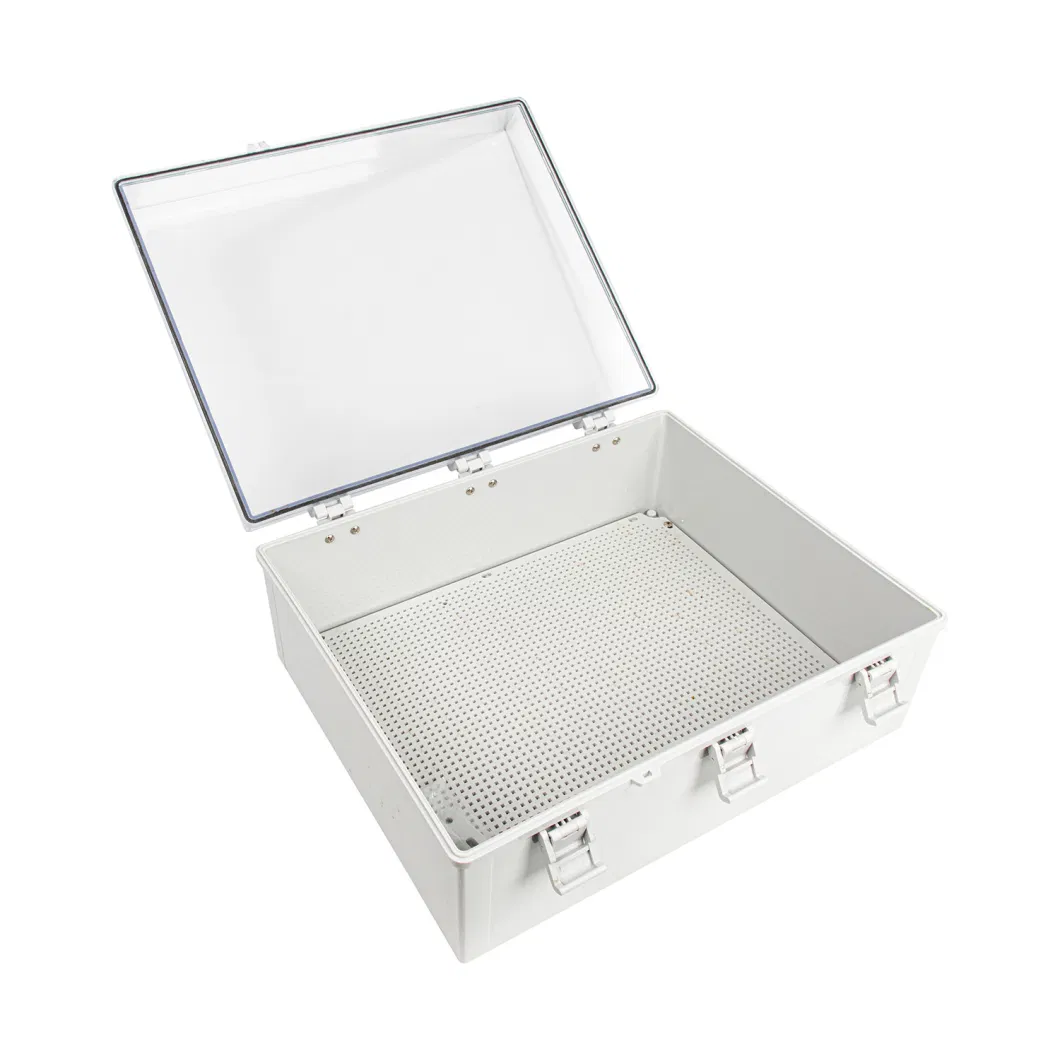

1. Inside: There are the installation holes in the base for circuit board or din rail (More than 2 pcs of M4 brass nuts have been put in each box).

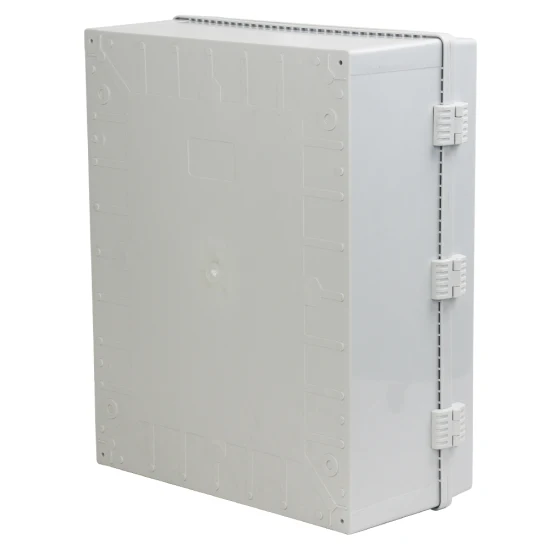

2. Outside: Can be fixed directly on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet Hole: Holes can be opened on the box as customers' requirements, and installing cable gland can bring with better waterproof performance.

20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box 20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box

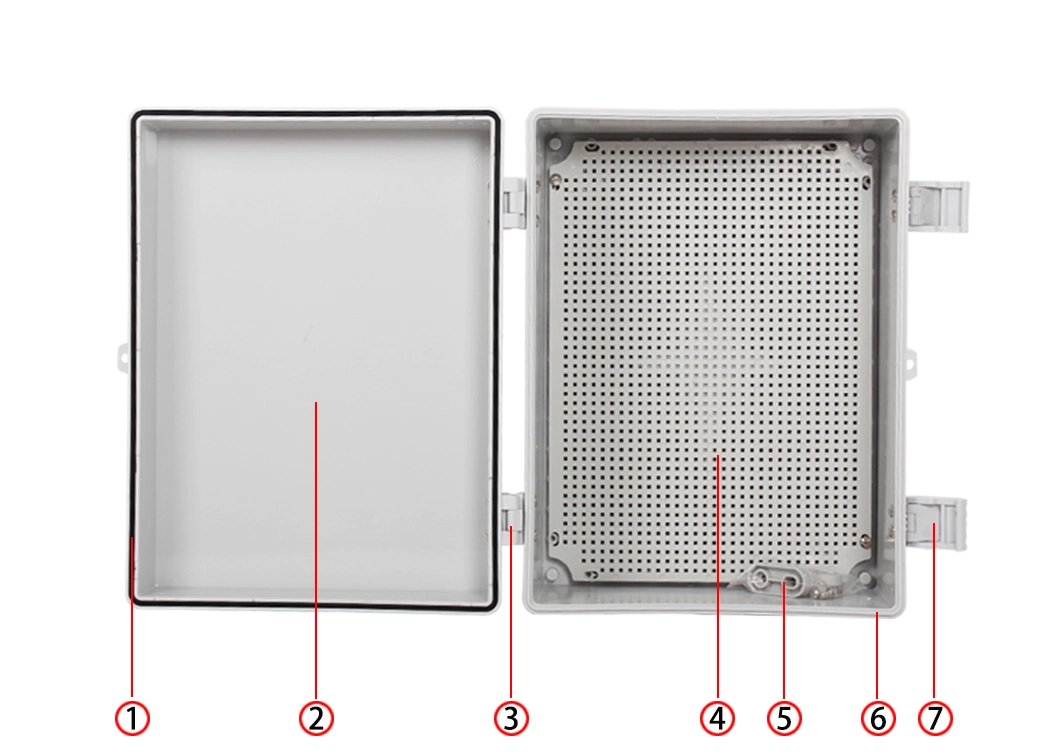

1 2 3 4 5 6 7
gasket lid connect Mounting plate Mounting accessories Box Card buckle
20*16*8inch ABS Plastics Photovoltaic Circuit Electrical Box 500*400*200mm IP66 Plastic Distribution Box

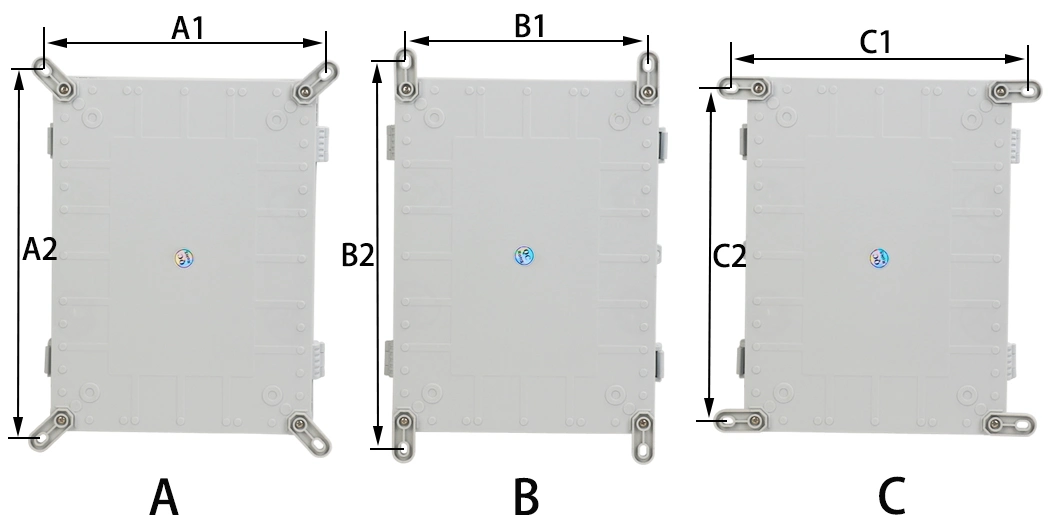

TYPE Installation method A Installation method B Installation method C
A1(mm) A2(mm) B1(mm) B2(mm) C1(mm) C2(mm)
300*200*160 20 30 16 32 22 26
300*200*170
300*200*180
300*300*170 30 30 26 32 32 26
300*300*180
400*300*160
400*300*170 30 50 26 42 32 36
400*300*180
400*300*200
400*300*220
500*400*200 40 50 36 52 42 46
600*400*220 40 60 36 62 42 56
600*500*220 50 60 46 62 52 56
800*600*250
